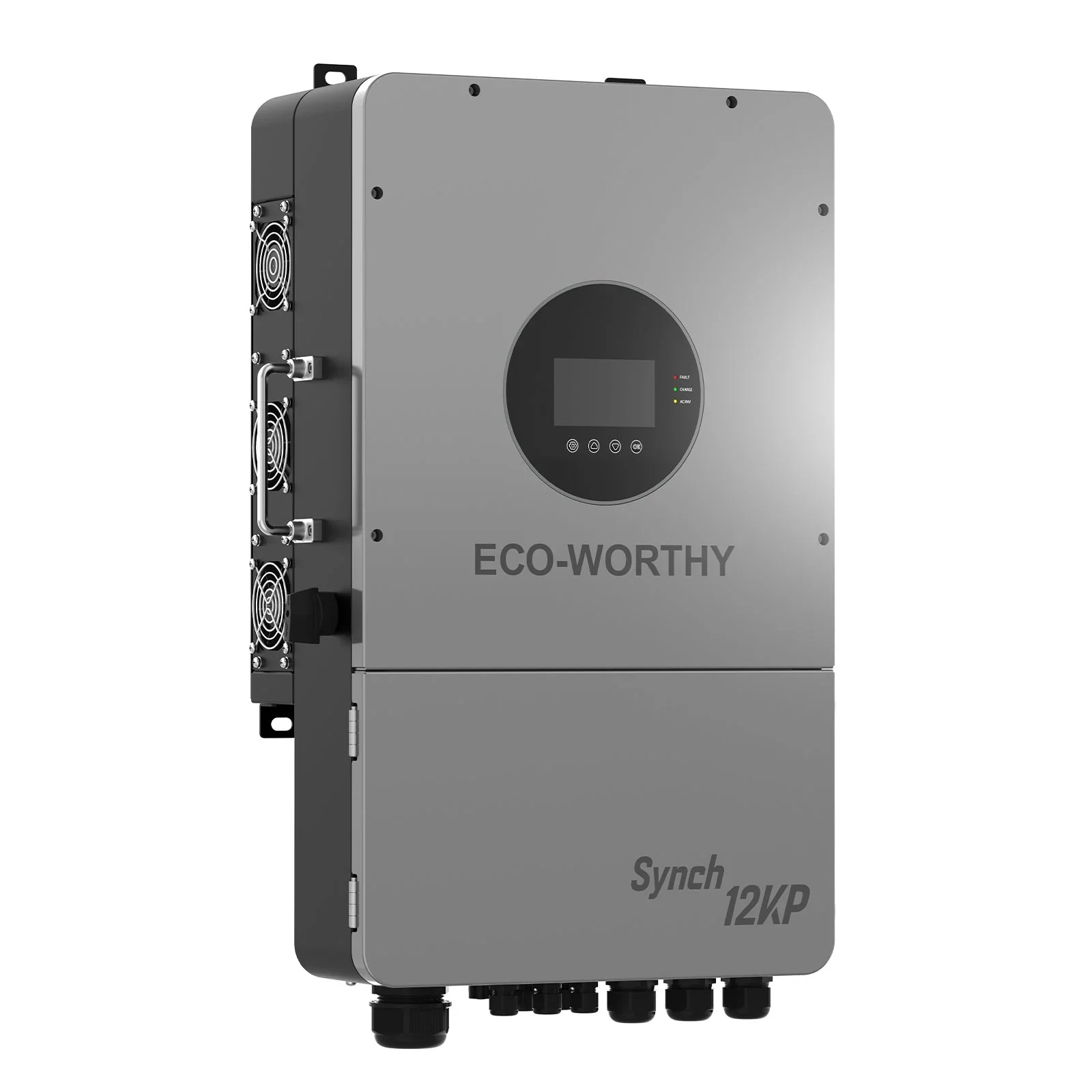

Eco-Worthy Synch 12KP Split-Phase Solar Hybrid Inverter | 48Vdc to 120Vac/240Vac | 13200W@550V PV Input

Power your home with a high-performance 12kW solar hybrid inverter, designed for whole-home energy storage and off-grid solar systems. Delivering 120V/240V split-phase output, it easily runs heavy appliances like HVAC and large loads. Featuring dual MPPT trackers with ultra-high efficiency, it maximizes solar input and supports flexible panel configurations. Smart energy management with time-of-use (TOU) control helps reduce electricity costs through peak shaving and optimized grid usage. Built with IP65 protection, advanced safety features (AFCI, rapid shutdown), and scalable up to 72kW, this inverter is the ideal solution for residential solar power, backup energy, and energy independence.

Technical Specifications

12KW INVERTER

Rated Output Power

@240V 12000W @208V 10400W

Max.Peak Power

2 times rated power@5S

Rated Output Voltage

120/240Vac(Split-phase)120/208V(Three-phase)

Rated Output Current

50A

Load Capacity of Motors

6HP

Rated ACF requency

50/60Hz

Wave form

Pure Sine Wave

Parallel Capacity

6

Battery Type

Li-ion / Lead-Acid / UserDefined

Rated Battery Voltage

48Vdc

Voltage Range

40-60Vdc

Max.PVCharging Current

200A

Max.Grid Charging Current

120A

Max.Generator Charging Current

60A

Max.Hybrid Charging Current

200A

Num. of MPPT rackers

2

Max.PV Array Power

6600W/6600W

Max.Input Current

25A+25A

Max.Voltage of Open Circuit

550Vdc+550Vdc

MPPT Voltage Range

125-450Vdc/125-450Vdc

Input Voltage Range

90-140Vac 90-140Vac each live wire

Frequency Range

50/60Hz

Bypass Phase Current

63A

Dimensions

29.5"×17.3"×9.4"

Weight

93lbs

Protection Degree

IP65

Operating Temperature Range

—13 - 140°F, >113°F derated

Noise

<60dB
